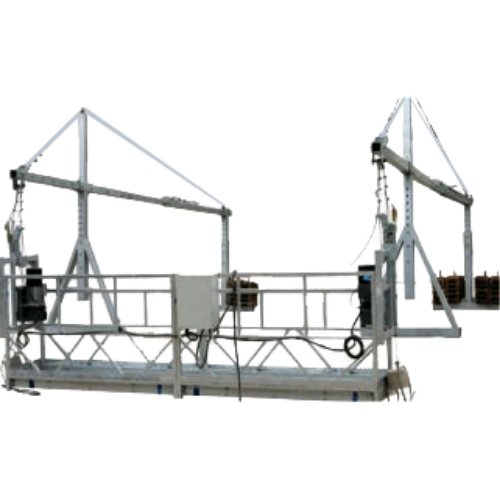

A large number of commercial high-rise buildings in India now feature external glass curtain walls that require regular maintenance and cleaning. This type of work is highly risky and is generally carried out using a Suspended Cradle System. The cradle is suspended from the rooftop, replacing conventional scaffolding methods and ensuring safer and more efficient operation. These systems are widely used for external brickwork, plastering, painting, finishing, glass cleaning, and other maintenance applications. Dhiman International Co. offers advanced Suspended Cradle Systems equipped with electrically operated hoisting machines, a reliable “A” type cable guidance system, anti-inclination safety locks, and speed limit safety locks for maximum operational safety. These systems are available with load capacities up to 800 kg and are designed to provide stable, smooth, and secure performance at various working heights.
| Specification | Details |
|---|---|
| Model | DIC-800 |
| Material | MS Steel Painted |
| Height | 100 Mtr. |
| Rated Load | 700 Kg. |
| Platform Length | 7.5 Mtrs. |
| Safety Lock Type | LST 20 |
| Volume | 3.5 m³ |
| Weight | 1900 Kg |
| Counter Weight | 25mm x 40 Pcs. MS Box |
| Diameter of Steel Rope | 8.6 mm |
| Voltage 3 Phase | 415 V |
| Working Speed | 9 Mtrs./Min. |
| Rated Lifted Load | 8 KN |
| Lifting Speed | 8.30.5m/Min. |
| Motor Power | 1.8 Kw |
| Working Wire Rope Dia | 8.6 mm |
| Operation Voltage | 415V |
| Frequency | 50 Hz |
| Motor Rotation Speed | 1440 R/Min. |
| Safety Lock Quantity | 2 Pcs |
| Rated Impact Force | 30 KN |
| Range of Rope | 3-8 |
| Lock Angle | - |
| Rope Lock Distance | <100 mm |
| Dia of Wire Rope Used | 8.6 mm |
