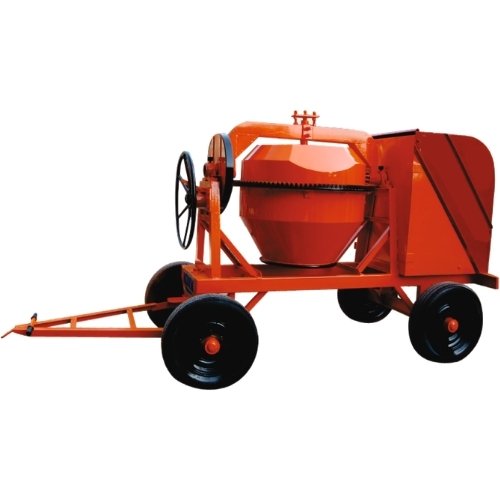

Concrete Mixer Machine is specially designed for efficiently mixing cement, sand, water, gravel, and other construction materials to produce high-quality concrete. Manufactured using premium-grade raw materials and advanced engineering technology, this machine is highly appreciated for its sturdy construction, smooth performance, and long operational life. It is widely used at construction sites, road projects, buildings, bridges, and various industrial applications for fast and uniform concrete mixing.
| Specification | Details |
|---|---|
| Type | Tilting Type |
| Chassis | Channel Size: 100x50" Heavy Duty |
| Cover | 16 Gauge Safety For Engine |
| Wheels | Cast Iron / Rubber New / Swift Car Type |
| Engine | Air Cooled 8Hp, Piston Size 95mm. |
| Mixing Drum |
A. Heavy Duty Drum Plate 10mm B. Cone Made out 8 Gauge Sheet. |
| Drum Speed | 22 RPM |
| Mixing Time | 180 Seconds Approx. |
| Motor | 5 Hp / 415V / 1440 RPM |
